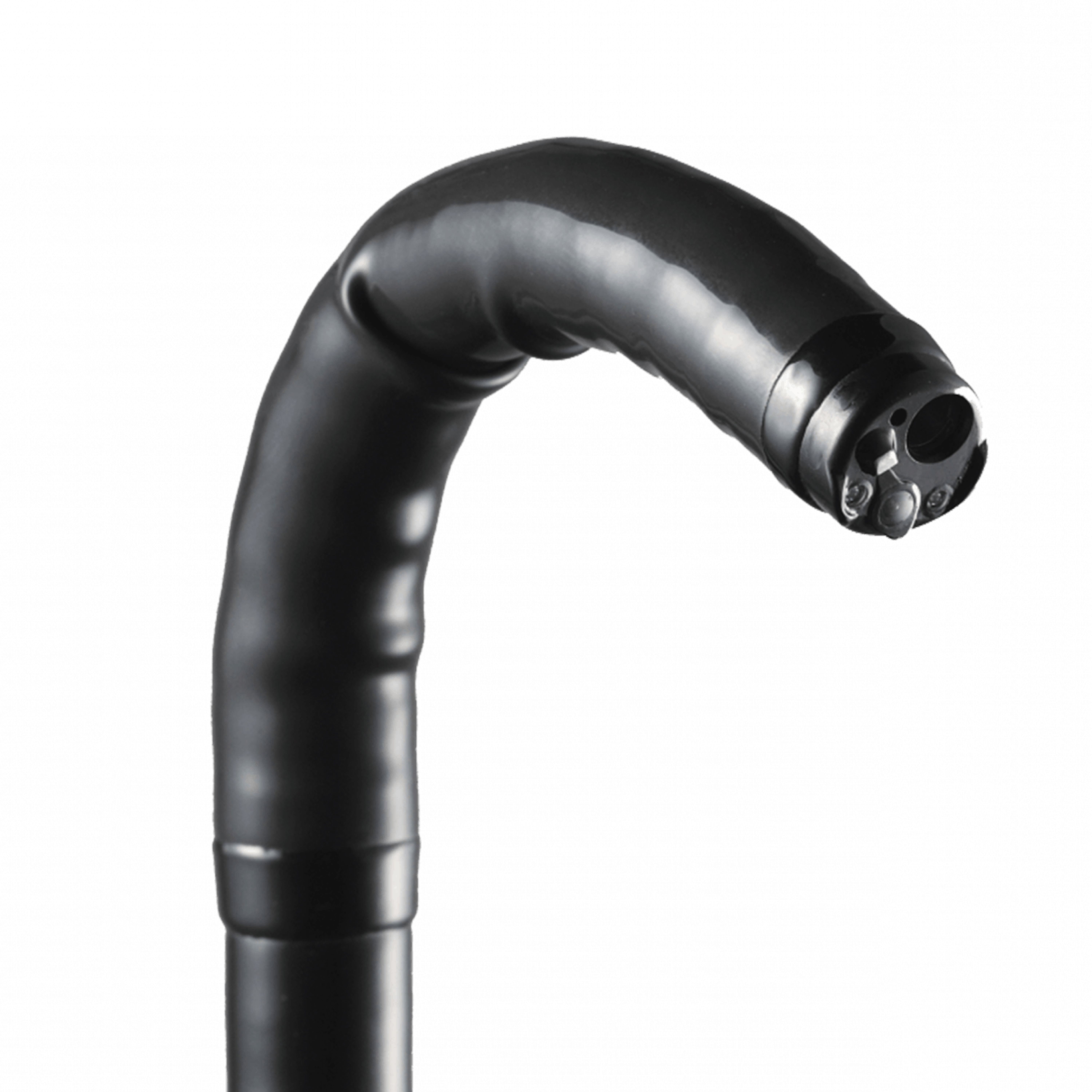

This gastroscope from the ELUXEO® 760 series is equipped with a large 3.8 mm instrument channel that is especially suitable for therapeutic procedures compared to the standard gastroscope EG-760R with an instrument channel of 2.8 mm.
Product
Characteristics
Observation Range
Field of view
Diameter distal end
Diameter insertion tube
Diameter working channel
Bending capability (up/down/left/right)
Product
Characteristics
LCI, BLI, Water Jet, Working length of 1,100 mm
Observation Range
2-100 mm
Field of view
140°
Diameter distal end
9.2 mm
Diameter insertion tube
9.3 mm
Diameter working channel
2.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Characteristics
LCI, BLI, Zoom, Water Jet, Working length of 1,100 mm
Observation Range
Normal 3-100 mm, Close 1-5 - 2.5 mm
Field of view
Normal 140° / Close 56°
Diameter distal end
9.9 mm
Diameter insertion tube
9.8 mm
Diameter working channel
2.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Product
Characteristics
LCI, BLI, Water Jet, Working length of 1,100 mm
Observation Range
2-100 mm
Field of view
140°
Diameter distal end
10.5 mm
Diameter insertion tube
10.8 mm
Diameter working channel
3.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Product
Characteristics
Observation Range
Field of view
Diameter distal end
Diameter insertion tube
Diameter working channel
Bending capability (up/down/left/right)
Product
Characteristics
LCI, BLI, , Working length of 1,100 mm
Observation Range
3-100 mm
Field of view
140°
Diameter distal end
5.8 mm
Diameter insertion tube
5.9 mm
Diameter working channel
2.4 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Product
Characteristics
LCI, BLI, Water Jet, Dual Channel, Working length of 1,030 mm
Observation Range
3-100 mm
Field of view
140°
Diameter distal end
12.8 mm
Diameter insertion tube
12.8 mm
Diameter working channel
3.7 / 3.2 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Product
Characteristics
Observation Range
Field of view
Diameter distal end
Diameter insertion tube
Diameter working channel
Bending capability (up/down/left/right)
Product
Characteristics
LCI, BLI, Working length of 1,100 mm
Observation Range
2-100 mm
Field of view
140°
Diameter distal end
9.2 mm
Diameter insertion tube
9.3 mm
Diameter working channel
2.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Product
Characteristics
Observation Range
Field of view
Diameter distal end
Diameter insertion tube
Diameter working channel
Bending capability (up/down/left/right)
Product
Characteristics
Water Jet, Working length of 1,100 mm
Observation Range
2-100 mm
Field of view
140°
Diameter distal end
9.2 mm
Diameter insertion tube
9.3 mm
Diameter working channel
2.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
