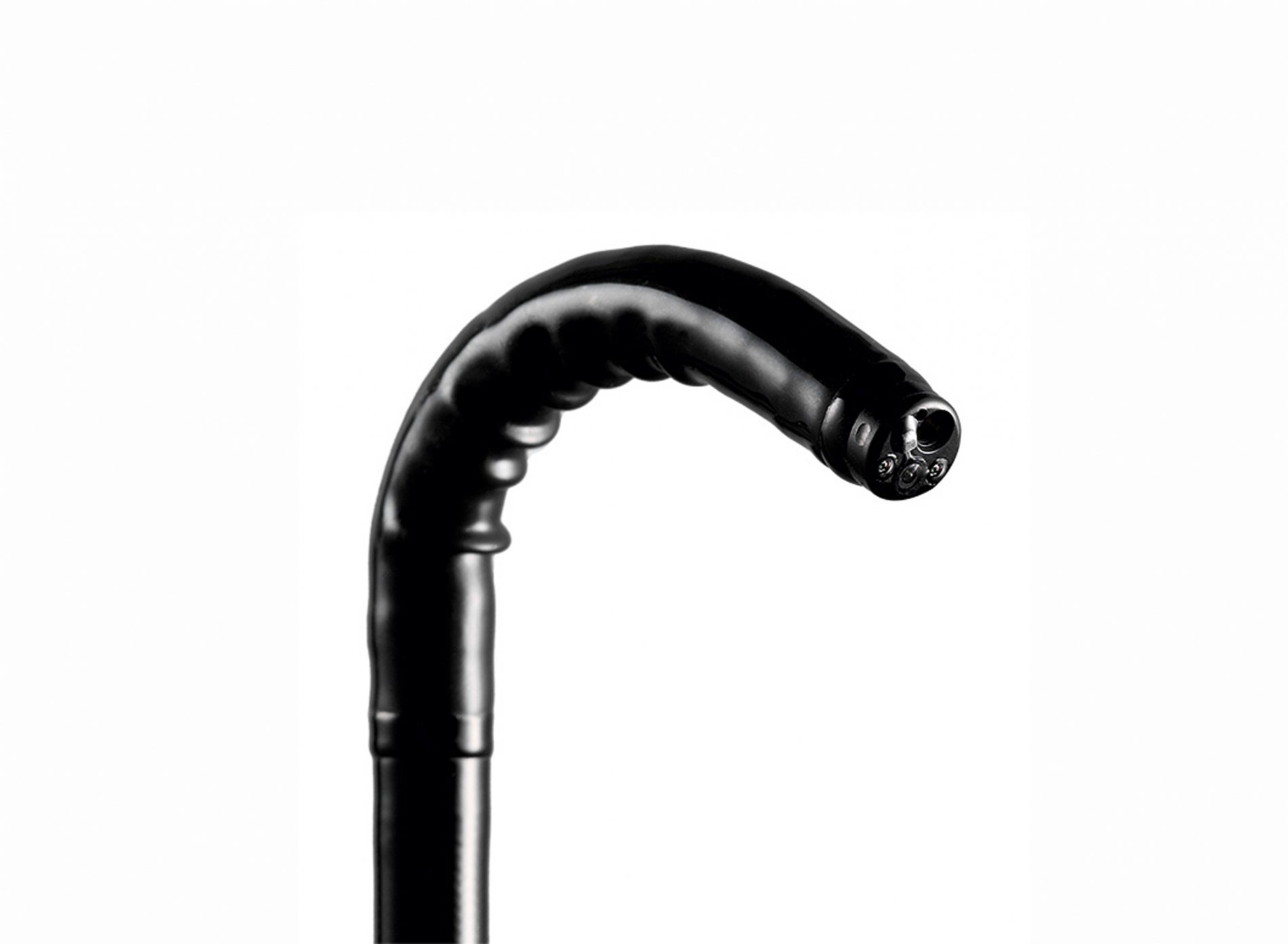

EG-760Z Optical magnification


This zoom gastroscope features the well-known 145x Multi Zoom (in combination with 26'' screen) which leads to clear and more detailed visualisation, supporting deeper analysis of mucosal structures. It has a small bending radius and similar functionality to the routine gastroscope including all features.

TECH SPEC

EG-760Z Specification

Characteristics
LCI, BLI, Zoom, Water Jet, Working length of 1,100 mm
Observation Range
Normal 3-100 mm, Close 1-5 - 2.5 mm
Field of view
Normal 140° / Close 56°
Diameter distal end
9.9 mm
Diameter insertion tube
9.8 mm
Diameter working channel
2.8 mm
Bending capability (up/down/left/right)
210°/90°/100°/100°
Features
  • CMOS Technology
  • Multi Light Technology
  • LCI®
  • BLI®
  • ACI® (Amber-red Color Imaging)
  • One-step Connector
  • G7 Grip
  • Water Jet Technology
  • Multi Zoom Technology
